Discover the Power of the Qhull Algorithm: The Gold Standard for Convex Hulls, Delaunay Triangulation, and Voronoi Diagrams. Explore How Qhull Transforms Computational Geometry with Speed and Accuracy.

• Introduction to the Qhull Algorithm
• Core Principles and Mathematical Foundations
• Key Features and Capabilities
• Applications in Computational Geometry
• Performance and Efficiency Analysis
• Comparison with Alternative Algorithms
• Implementation Details and Supported Platforms
• Limitations and Known Challenges
• Real-World Use Cases and Case Studies
• Future Directions and Ongoing Development
• Sources & References

Introduction to the Qhull Algorithm

The Qhull algorithm is a widely used computational geometry tool designed to compute the convex hull, Delaunay triangulation, Voronoi diagram, and related structures for a set of points in multi-dimensional space. Developed in the 1990s, Qhull implements the “Quickhull” algorithm, which is conceptually similar to the well-known Quicksort algorithm, leveraging a divide-and-conquer approach to efficiently process geometric data. The algorithm is particularly valued for its ability to handle high-dimensional datasets and its robustness in practical applications, such as computer graphics, geographic information systems, and scientific computing.

Qhull operates by recursively finding the “extreme” points that form the outer boundary (the convex hull) of a dataset, partitioning the remaining points, and repeating the process on each subset. This method allows Qhull to achieve good average-case performance, especially for points distributed in general position. The software implementation of Qhull is open-source and widely adopted, providing both a command-line interface and a library for integration into other software projects. Its versatility and reliability have made it a standard tool in computational geometry research and industry applications.

For further technical details and access to the Qhull software, users can refer to the official documentation provided by Qhull. The algorithm’s theoretical foundations and performance characteristics are also discussed in resources from University of Florida and Carnegie Mellon University.

Core Principles and Mathematical Foundations

The Qhull algorithm is fundamentally grounded in the principles of computational geometry, specifically in the construction of convex hulls, Delaunay triangulations, and Voronoi diagrams in multi-dimensional spaces. At its core, Qhull employs the beneath-beyond method, an incremental approach that builds the convex hull by successively adding points and updating the hull structure. This method relies on the mathematical concept of convexity, where a set of points forms a convex hull if every line segment between two points in the set remains entirely within the set.

Qhull’s algorithmic process begins by identifying a simplex (the simplest convex polytope in a given dimension, such as a triangle in 2D or a tetrahedron in 3D) that contains a subset of the input points. It then iteratively adds new points, updating the hull by determining which facets (faces) are visible from the new point and replacing them with new facets that include the new point. This process is mathematically rigorous, relying on orientation predicates and determinant calculations to test visibility and maintain the hull’s convexity.

The algorithm is designed to handle degenerate cases (such as co-linear or co-planar points) through techniques like symbolic perturbation, ensuring robustness and correctness. Qhull’s mathematical foundation also extends to duality principles, enabling the computation of Delaunay triangulations and Voronoi diagrams by transforming the convex hull problem into higher-dimensional spaces. The efficiency and reliability of Qhull stem from these core geometric and algebraic principles, making it a standard tool in computational geometry applications (Qhull).

Key Features and Capabilities

The Qhull algorithm is renowned for its robust and versatile approach to computing convex hulls, Delaunay triangulations, and Voronoi diagrams in multi-dimensional spaces. One of its key features is its ability to handle input data in two or more dimensions, making it suitable for a wide range of computational geometry applications. Qhull implements the Quickhull algorithm, which is an efficient, divide-and-conquer method for constructing convex hulls, and extends this approach to higher dimensions with careful management of numerical precision and degeneracies.

A significant capability of Qhull is its support for halfspace intersections, allowing users to compute the intersection of a set of halfspaces, which is essential in linear programming and optimization problems. The algorithm is also designed to manage precision issues, offering options for exact arithmetic and robust handling of nearly degenerate input data. This makes Qhull particularly reliable for scientific and engineering applications where numerical stability is critical.

Qhull provides extensive output options, including the ability to generate facets, vertices, and ridges of the computed structures, as well as adjacency information. It supports various input and output formats, facilitating integration with other software tools and visualization packages. Additionally, Qhull is available as both a standalone program and a library, enabling its use in custom applications and automated workflows. Its open-source nature and comprehensive documentation further enhance its accessibility and adaptability for researchers and developers alike (Qhull).

Applications in Computational Geometry

The Qhull algorithm is a cornerstone in computational geometry, widely recognized for its efficiency in constructing convex hulls, Delaunay triangulations, and Voronoi diagrams in multi-dimensional spaces. Its applications span a variety of domains where geometric computations are essential. In computer graphics, Qhull is used for mesh generation, collision detection, and shape analysis, enabling the creation and manipulation of complex 3D models. In scientific computing, it supports the analysis of spatial data, such as clustering in high-dimensional datasets and the computation of minimal bounding volumes for molecular modeling or astronomical data sets.

Qhull’s ability to handle input in two to nine dimensions makes it particularly valuable for multidimensional data analysis, where traditional algorithms may struggle with efficiency or accuracy. For example, in machine learning, Qhull is employed to compute convex hulls for support vector machines and outlier detection, providing geometric insights into data distributions. In robotics and path planning, the algorithm assists in workspace analysis and obstacle avoidance by generating convex decompositions of environments.

Moreover, Qhull’s robust implementation and open-source availability have led to its integration into numerous software libraries and platforms, such as MATLAB, R, and Python’s SciPy, broadening its accessibility and impact across disciplines. Its versatility and reliability make it a preferred choice for researchers and engineers dealing with geometric computations in both theoretical and applied contexts (Qhull).

Performance and Efficiency Analysis

The performance and efficiency of the Qhull algorithm are critical factors in its widespread adoption for computational geometry tasks such as convex hull, Delaunay triangulation, and Voronoi diagram construction. Qhull employs the Quickhull algorithm, which is analogous to the well-known Quicksort, and typically exhibits an average-case time complexity of O(n log n) for convex hulls in two and three dimensions. However, in the worst case, particularly for degenerate or pathological input distributions, the complexity can degrade to O(n²) or worse in higher dimensions. Despite this, Qhull is highly optimized for practical datasets and often outperforms other algorithms in real-world scenarios due to its incremental approach and efficient handling of precision issues.

Qhull’s implementation is designed to minimize memory usage and computational overhead. It uses in-place data structures and supports exact arithmetic to mitigate errors from floating-point calculations, which is crucial for robustness in geometric computations. The algorithm also incorporates strategies for early termination and pruning of unnecessary computations, further enhancing its speed. Benchmarks reported by Qhull indicate that it can process tens of thousands of points in seconds on modern hardware, with performance scaling well for moderate dimensions (up to 8D). However, as dimensionality increases, both time and memory requirements grow rapidly, making Qhull less suitable for very high-dimensional data.

In summary, Qhull’s efficiency stems from its algorithmic design and careful implementation, making it a preferred choice for convex hull and related computations in low to moderate dimensions, as confirmed by its extensive use in scientific and engineering applications (Qhull).

Comparison with Alternative Algorithms

When comparing the Qhull algorithm to alternative algorithms for computing convex hulls and related structures, several key differences emerge in terms of performance, robustness, and applicability. Qhull is renowned for its implementation of the Quickhull algorithm, which is conceptually similar to the well-known Quicksort and is particularly efficient for low to moderate dimensions (2D, 3D, and up to 8D in practice). Its output-sensitive nature means that its running time depends on both the number of input points and the size of the output hull, making it highly efficient for datasets where the convex hull is relatively small compared to the input size (Qhull).

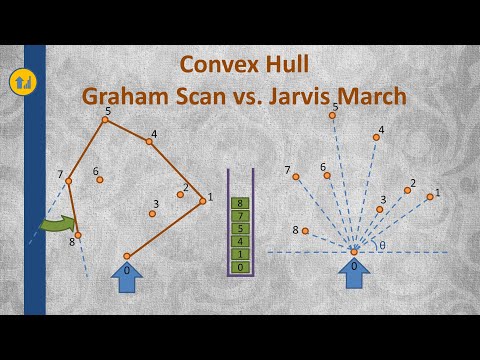

In contrast, algorithms such as Graham’s scan and Andrew’s monotone chain are specifically tailored for 2D convex hulls and offer O(n log n) worst-case performance, but do not generalize easily to higher dimensions. The Beneath-Beyond algorithm and incremental algorithms, like those implemented in CGAL, are more flexible in higher dimensions but may suffer from increased computational complexity and memory usage as the dimension grows. Furthermore, randomized algorithms such as Clarkson’s algorithm can offer improved expected performance in high dimensions, but may lack the deterministic guarantees and robustness of Qhull.

Qhull also distinguishes itself by supporting not only convex hulls but also Delaunay triangulations, Voronoi diagrams, and halfspace intersections, making it a versatile tool for computational geometry. However, for extremely large datasets or very high-dimensional problems, specialized libraries like SciPy (which wraps Qhull for Python) or parallelized algorithms may be preferable for scalability. Ultimately, the choice between Qhull and alternative algorithms depends on the specific requirements of the application, including dimensionality, dataset size, and the need for additional geometric computations.

Implementation Details and Supported Platforms

The Qhull algorithm is implemented primarily in C, offering a robust and efficient solution for computing convex hulls, Delaunay triangulations, and Voronoi diagrams in multiple dimensions. The reference implementation is distributed as open-source software, facilitating integration into a wide range of scientific and engineering applications. Qhull’s codebase is designed for portability, adhering to ANSI C standards, which allows it to be compiled and executed on various operating systems, including Linux, macOS, and Windows. The software provides both a command-line interface and a callable library, enabling users to interact with Qhull either through direct execution or by embedding its functionality within custom programs.

Qhull supports input data in several formats, such as plain text files and streams, and outputs results in formats suitable for visualization and further processing. The algorithm is optimized for numerical stability and can handle degenerate cases and precision issues that often arise in computational geometry. Additionally, Qhull is integrated into several high-level programming environments and libraries, such as MATLAB, R, and Python (via SciPy), broadening its accessibility to users who prefer scripting languages over C. The official distribution includes comprehensive documentation, example datasets, and test suites to assist developers in deploying and validating the algorithm on their chosen platforms. For more details on supported platforms and implementation specifics, refer to the Qhull Official Website and the SciPy Official Website.

Limitations and Known Challenges

While the Qhull algorithm is widely recognized for its efficiency and robustness in computing convex hulls, Delaunay triangulations, and Voronoi diagrams, it is not without limitations and challenges. One significant issue is its sensitivity to numerical precision. Qhull relies on floating-point arithmetic, which can lead to robustness problems, especially when handling degenerate or nearly degenerate input data. Small numerical errors may result in incorrect facet construction or topological inconsistencies, particularly in higher dimensions or with large datasets. This is a common challenge in computational geometry, and Qhull’s documentation explicitly warns users about potential precision issues (Qhull).

Another limitation is scalability. While Qhull performs well for low to moderate dimensions (typically up to 8 or 9), its computational complexity increases rapidly with dimensionality, making it impractical for very high-dimensional data. The algorithm’s worst-case time complexity is exponential in the number of dimensions, which can lead to excessive memory consumption and long computation times for large or complex datasets (Qhull).

Additionally, Qhull may struggle with input data that contains duplicate or nearly coincident points, as these can cause failures or require preprocessing to resolve. The algorithm also assumes that input data is in general position; special care must be taken when this is not the case. Despite these challenges, Qhull remains a standard tool, but users must be aware of its limitations and consider alternative approaches or preprocessing steps for problematic datasets (Qhull).

Real-World Use Cases and Case Studies

The Qhull algorithm, renowned for its efficiency in computing convex hulls, Delaunay triangulations, and Voronoi diagrams, has found extensive application across diverse scientific and engineering domains. In computational geometry, Qhull is a foundational tool for mesh generation and surface reconstruction, critical in computer graphics and 3D modeling. For instance, the algorithm is integral to point cloud processing in LiDAR data analysis, where it helps reconstruct terrain surfaces and identify object boundaries in autonomous vehicle navigation systems (Qhull).

In the field of data science, Qhull is employed for multidimensional outlier detection and clustering. Its ability to compute convex hulls in high-dimensional spaces enables robust identification of data boundaries and anomalies, which is particularly valuable in fraud detection and bioinformatics. For example, researchers have used Qhull to delineate the feasible region of metabolic networks in systems biology, facilitating the analysis of metabolic flux distributions (National Center for Biotechnology Information).

Case studies in robotics highlight Qhull’s role in real-time collision detection and motion planning. By rapidly generating convex hulls of robot parts and obstacles, the algorithm supports efficient pathfinding and safety verification in dynamic environments. Additionally, in geosciences, Qhull underpins the construction of geological models from scattered spatial data, aiding in resource estimation and risk assessment (U.S. Geological Survey).

These real-world applications underscore Qhull’s versatility and reliability, making it a cornerstone algorithm in both academic research and industry solutions.

Future Directions and Ongoing Development

The future development of the Qhull algorithm is shaped by both advances in computational geometry and the evolving needs of scientific and engineering applications. One key direction is the enhancement of Qhull’s scalability and performance for high-dimensional data, as modern datasets often exceed the dimensions for which Qhull was originally optimized. Researchers are exploring parallelization strategies and GPU acceleration to address computational bottlenecks, aiming to make Qhull more suitable for large-scale, real-time applications in fields such as machine learning and robotics.

Another area of ongoing development is the improvement of numerical robustness. As Qhull is sensitive to floating-point errors, especially in degenerate or nearly-degenerate cases, there is active work on integrating more robust arithmetic and adaptive precision techniques. This is crucial for applications in computational biology, computer-aided design, and geographic information systems, where precision is paramount.

Interoperability and ease of integration with modern programming environments are also priorities. Efforts are underway to provide more comprehensive APIs, bindings for languages such as Python and Julia, and better documentation to facilitate adoption by a broader user base. The open-source nature of Qhull encourages community contributions, which are coordinated through its official repository and mailing lists (Qhull).

Finally, there is a growing interest in extending Qhull’s capabilities beyond convex hulls, Delaunay triangulations, and Voronoi diagrams, to support new geometric constructs and algorithms. This includes hybrid approaches that combine Qhull with other computational geometry libraries, fostering innovation and expanding its applicability in emerging domains.

Sources & References

• University of Florida
• Carnegie Mellon University
• CGAL
• SciPy
• National Center for Biotechnology Information
